In 2010 MIPL established A State of the Art Greenfield facility in HathKhoj, Bhilai, and has continously upgraded the same till date .

MIPL is capable of executing over 1,500 MT per month fabrication of Steel Structures and the same can be scaled upto 2000 MT per month.

Today MIPL has over 2 lac square feet of covered shed under 20 overhead cranes and support facilities comprising offices, stores, canteen, temple, workers rest areas and others.

Miura Infrastructure Private Limited has adequate Financial and Technical resources to execute quality fabrication of Structures in a Cost effective and Time bound fashion. MIPL is duly registered with all statutory bodies and complies with all applicable Statutory, Financial, Enviornmental and Labour laws.

VISION STATEMENT
To continually grow, be a recognized leader and be the best in class manufacturer and solutions provider of Metal Fabricated Products and Services.

MISSION STATEMENT
MIPL is in the Fabrication and Machining business and is committed to Quality and Excellence by working to build an organization that continuously evaluates, innovates and improves various processes and consistently delivers on Quality, Safety, Reliability and Service to all its Customers, Vendors and Stakeholders.


VALUES
Integrity, Industry, Teamwork, Excellence.

MIPL is proud to be associated with the following Industries that are a part of the ambitious Make in India Campaign unveiled by the
Honourable Prime Minister Shri. Narendra Modi.

Industries Served :
THERMAL POWER, CONSTRUCTION,  MINING,
OIL AND GAS, RAILWAYS,
CHEMICALS & PETROCHEMICALS


EVOLUTION OF MIPL

FACILITIES


SHED 1 (200 metres x 50 metres)

Bay 1 - Machine Shop and Heavy Fabrication Area
(serviced by 1 x 50 MT EOT and 2 x 20 MT Double Girder EOT cranes,)

Bay 2 - comprises of Heavy H Beam Line
(serviced by 2 x 16 MT Double Girder and 1 x 10 Mt Singe Girder EOT cranes).

Bay 3 - light fabrication structures
(serviced by 2 x 5 Ton EOT Cranes)


Max Height under Hook : 9.5 m.

SHED 2 (100 metres x 125 meters)

Heavy Fabrication in 3 bays
(each serviced by 6 x 20/5 MT Double Girder EOT cranes).
Max. Height under Hook : 10.5 m

Material Storage and Steel Preparation in 2 bays
(Serviced by 2 x 10 Mt and 2 x 5 Mt overhead cranes)

BEAM LINE FACILITIES

HEAVY H BEAM LINE 1

 Fully Integrated from Plate Cutting to Shot Blasting


Maximum Web Height :  200-2500mm.
Maximum Web Thickness : 6-50mm.
Maximum Flange Width :  200-1100mm.
Maximum Flange Thickness :  6-80mm.

Beam Line 2

H BEAM LINE 2

Assembly, Welding and Straightening - All in single pass


Maximum Web Height : 200-1800mm.
Maximum Web Thickness : 6-20mm.
Maximum Flange Width : 200-800mm.
Maximum Flange Thickness : 6-40mm.

HEAVY H BEAM LINE

CNC Multi Head Gas cutting Machine

Model: GS/Z – 4000

Automatic H Beam Assemply Machine

Model: HGS – 2500

Double Cantilever Submerged Arc Welding Machine

Model: MZGT-2000

H Beam Flange Hydraulic Pressure Straightening Machine

Model: YJ-80

End Face Milling Machine

Model : DX 1224

FICEP CNC DRILLING MACHINE - 1103 DEB

Drilling

with tool changer

Drilling Capacity : 2 horizontal & 1 vertical drilling head.
Max. Drilling Thickness : 75 mm.
Horsepower per spindle : 18
Spindle speed range (RPM) : 180 - 2,500
Maximum hole size : 40mm

Marking

Daisy wheel marking unit.

Marking Capacity : Scribing on four sides KN 80
Marking position : 36
Size of marking letter : 16*8

Sawing

Model: MZGT-2000

Maximum section depth : 40 mm.
At 90 deg - 1100x450
At 45 deg.- 700x450
At 60 deg.- 500x450

BASIC EQUIPMENT FABRICATION

Band Saw

Plate Bending Machine

Plano Miller

800 MT Hydraulic Press

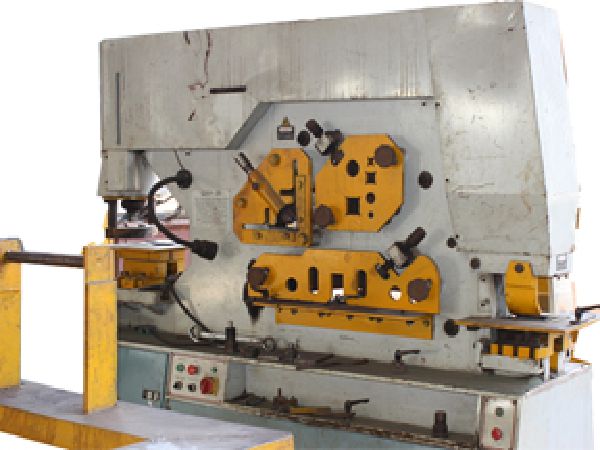

Iron Worker

Plate Cutting Machine

Horizontal Boring Machine

Lathes

Column Boom Welding Machine

Rotators in Pit

SHOT BLASTING & PAINTING FACILITIES

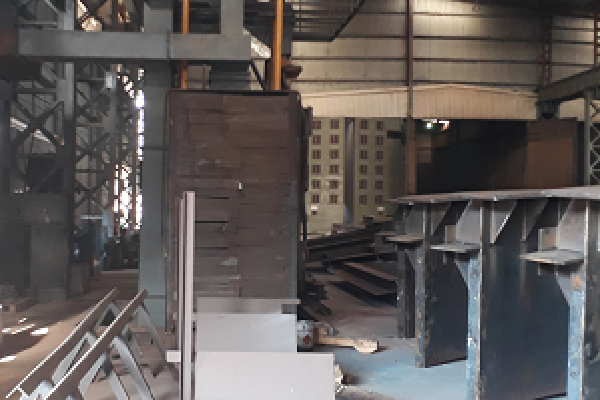

SHOT BLAST MACHINE 1

 Trolley Type Shot Blasting Machine

- 10 Nos. blasting nozzle,
- Max job height 2400mm,
- Max job width 1400mm

Beam Line 2

SHOT BLAST MACHINE 2

Roller Type Shot Blasting Machine

- 4 Nos. blasting nozzle,
- Max job height 600 mm,
- Max job width 600 mm

SHOT BLAST BOOTHS

2 nos. Shot Blast Booths
Each of 25m x 8m x 10m size

Serviced by 50 MT trolley
Full floor recovery system & cartridge type dust collectors.

PAINT BOOTHS

2 nos Paint Booths
Each of 25m x 8m x 10m size

Serviced by 50 MT trolley
 Andrea Air Filter System.

QUALITY & INSPECTION FACILITIES

QUALITY STATEMENT

At Miura Infrastructure Private Limited
we are committed to Quality and Excellence,
by continuously improving our processes and systems
meeting the highest possible technological standards,
striving to understand our customers needs,
providing competitive and cost effective solutions,
ensuring on time delivery of products and services,
and to uphold our customers expectations
of Excellence and Growth in
Quality, Safety, Reliability and Service.

We are an ISO 9001 : 2008 Certified Company and we have also been accredited for EMS ISO 14001 : 2015 & OHSAS 18001 : 2007

Inspection  & Testing Facilities :

Non Destructive Testing

In House :
DP Test: ASME SEC VIII Div-1, APP-8
UT Test : For Weld Joint ASME SEC VIII, Div-1, APP-12
             : For Plate ASTM A 435 &A578  Level A,B,C
Outsourced :
RT Test : ASME SEC VIII Div-1, APP-4.
MPI Test : ASME SEC VIII Div-1, APP-6.

Destructive Testing

Outsourced :
Mechanical : UTM
Chemical : Spectro/Wet process.

Pressure Testing


Inhouse :
Hydraulic & Pneumatic, Pressure gauge : 5 to 250 KG/CM2

Assembly & Shop Trial Can be done as per customer requirement.


PHOTO GALLERY

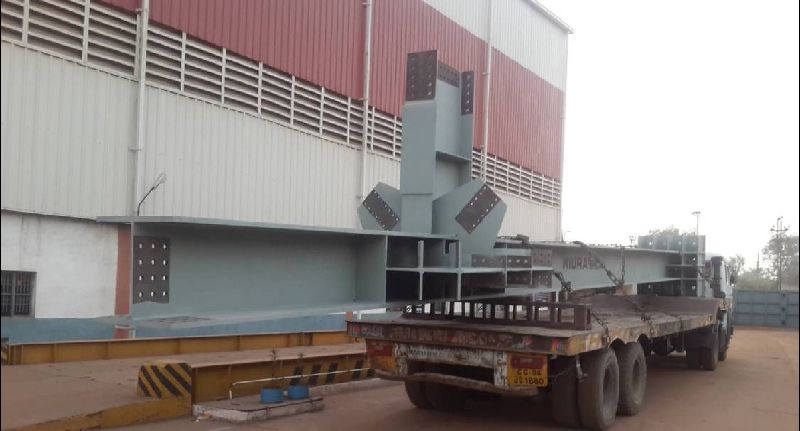

Recent Export Project : Ash Handling Plant Structures supplied to Hyundai for Therma Visyas project in the Phillipines
